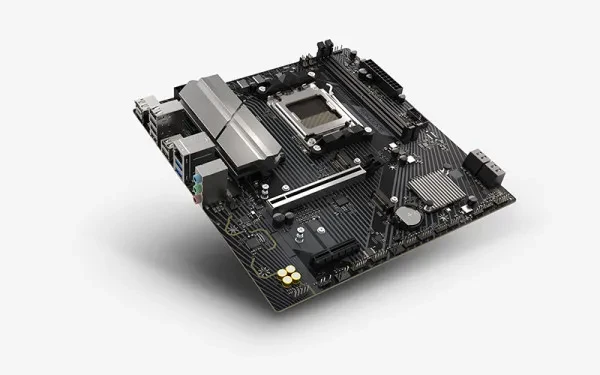

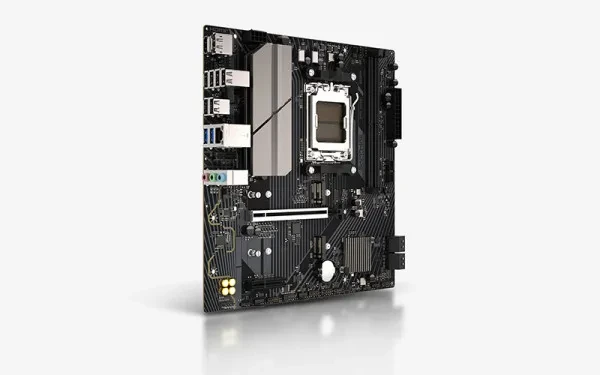

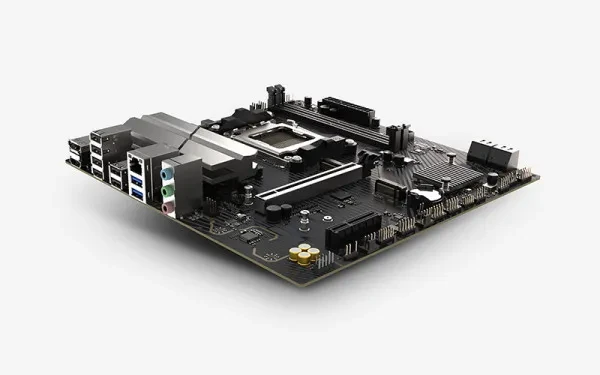

MB AM5 SAPPHIRE B650M-E 1xDP, 1xHDMI, 52112-04-40G
- Proizvod iz grupe: Matične ploče za Intel socket
- Proizvođač: Sapphire
- Dostupna količina: 10
Chipset | AMD® B650 |
Chip | Supports AMD Socket AM5 Processors including Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors |
Podrzana memorija | 2x DIMM, Dual Channel DDR5, Maximalno 96GB (2x 48GB), do 7600 MHz(OC) |
PCI-E slotovi za nadogradnju | 1x PCIe 4.0 x16, 1x PCIe 4.0 x4 |
Video izlazi | DisplayPort x1, HDMI x1 |
Audio | Realtek® ALC897 HD Audio, 5.1 Channel |
Mreža | Realtek® RTL8125BG 2.5 Gigabit Ethernet |
Priključci za USB | 1x USB 3.2 Gen1 (2 x Type-A),2x USB 2.0 (4 x Type-A) |
Priključci nazad | 1× DisplayPort, 1× HDMI™6× USB 2.0, 2× USB 3.2 Gen1 Type-A 1× RJ45 LAN, 3× Audio Jacks |
M.2 slotovi | 1x PCIe 5.0 M.2, 1x PCIe 4.0 M.2, 4x SATA |
Dimenzije | Micro-ATX, 244x235mm |
Debug LED | DRAM: Yellow, CPU: Red, GPU: White, Boot: Green |
link ka stranici | https://www.sapphiretech.com/en/consumer/mb_sapphire-b650m-e#Specification |
