Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

Interface:

8 10/100/1000 Mbps RJ45 Ports

AUTO Negotiation/AUTO MDI/MDIX

Network Media                10BASE-T:

UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity: Fanless

Power Supply: External Power Adapter(Output: 5 VDC/ 0.6 A)

Dimensions ( W x D x H ):158 × 101 × 25 mm

Max Power Consumption: 3.68 W (220 V/ 50 Hz)

Max Heat Dissipation: 12.55 BTU/h

PERFORMANCE

Switching Capacity: 16 Gbps

Packet Forwarding Rate:  11.9 Mpps

MAC Address Table: 4 K

Packet Buffer Memory: 1.5 Mb

Jumbo Frame: 16 KB

SOFTWARE FEATURES

Quality of Service:

Support Port-based/802.1p/DSCP priority

Support 4 priority queues

Rate Limit

Storm Control

L2 Features:

IGMP Snooping V1/V2/V3

Static Link Aggregation

Port Mirroring

Cable Diagnostics

Loop Prevention

VLAN:

Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)

MTU/Port/Tag VLAN

Transmission Method: Store-And-Forward

OTHERS

Certification: FCC, CE, RoHS

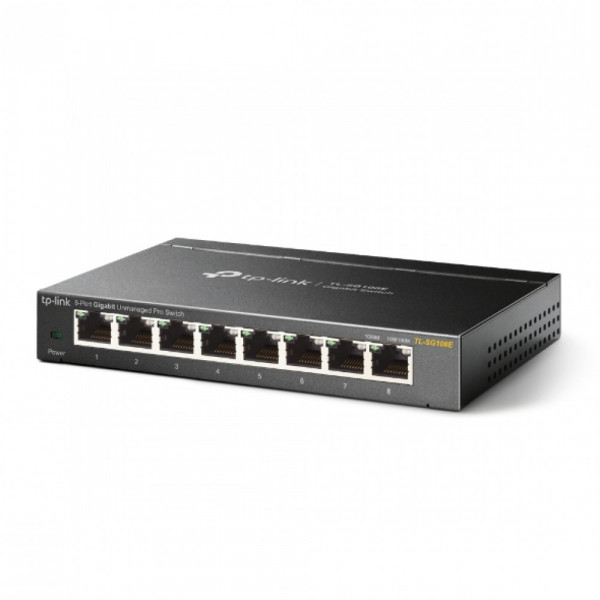

Package Contents: TL-SG108E

Power Adapter

Installation Guide

Rubber Feet

System Requirements: Microsoft® Windows® for running Utility
