Switch 8* 1G TP-Link TL-SG108PE
Šifra: TL-SG108PE
- Proizvod iz grupe: Switch uređaji
- Proizvođač: TP-Link
- Dostupna količina: 2
Maloprodajna cena:
10.999,00 rsd.
Akcijska cena:
7.589,00 rsd.
Popust:
3.410,00 rsd.
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at |
|---|---|
| Interface | Eight 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Power Supply | External Power Adapter (Output: 53.5 VDC/1.31 A) |
| PoE Ports (RJ45) | Standard: 802.3 af/at compliant PoE Ports: Port 1- Port 4 PoE Power Budget: 64W |
| Dimensions ( W x D x H ) | 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm) |
| Max. Power Consumption | 5.41 W (220V/50Hz with no PD connected) 74.27 W (220V/50Hz with 64 W PD connected) |
| Max. Heat Dissipation | 18.45 BTU/h (with no PD connected) 253.26 BTU/h (with 64 W PD connected) |
| Switching Capacity | 16 Gbps |
|---|---|
| Packet Forwarding Rate | 11.9 Mpps |
| MAC Address Table | 4 K |
| Packet Buffer Memory | 1.5 Mb |
| Jumbo Frame | 16 KB |
| Quality of Service | Support Port-Based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control |
|---|---|
| L2 Features | IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention PoE Auto Recovery |
| VLAN | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN |
| Management Features | Web-based GUI Easy Smart Configuration Utility |
| Transmission Method | Store-And-Forward |
| Certification | FCC, CE, RoHS |
|---|---|
| Package Content | TL-SG108PE Power Adapter Installation Guide Rubber Feet |
| System Requirements | Microsoft® Windows® for running Utility |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90%RH non-condensing Storage Humidity: 5%~95%RH non-condensing |

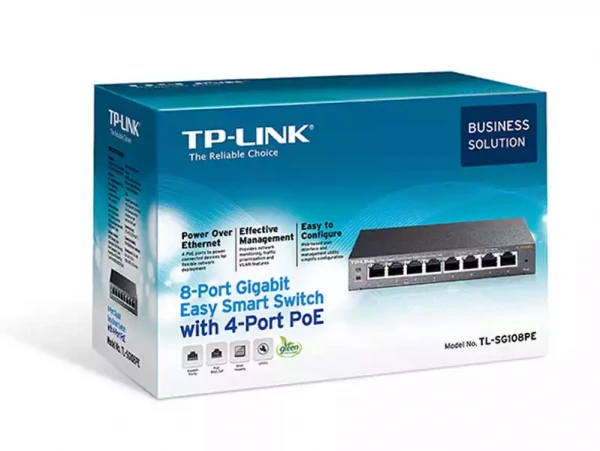

TP-Link PoE Switch TL-SG108PE
Osam 10/100/1000 Mbps RJ45 portova Opremljen sa četiri 802.3af/at PoE+ porta sa do 30 W za svaki port, podaci i napajanje mogu se prenositi preko jednog kabla Podržava PoE napajanje do 64 W za sve PoE portove* Omogućava praćenje mreže, određivanje prioriteta saobraćaja, VLAN funkcije i PoE automatsko oporavak Jednostavno podešavanje mreže pored plug-and-play povezivanja Veb korisnički interfejs i Easy Smart Configuration Utility pojednostavljuju konfiguraciju Dizajn bez ventilatora smanjuje potrošnju energije i eliminiše buku pri radu
