WIRELESS

Standards:

Wi-Fi 4

IEEE 802.11n/b/g 2.4 GHz

WiFi Speeds:

N300

2.4 GHz: 300 Mbps (802.11n)

WiFi Range:

2 Bedroom Houses

2× Fixed Antennas

WiFi Capacity: Legacy

Working Modes:

Router Mode

Access Point Mode

Range Extender Mode

WISP Mode

HARDWARE

Processor: Single-Core CPU

Ethernet Ports:

1× 10/100 Mbps WAN Port

4× 10/100 Mbps LAN Ports

Buttons                : Reset Button

Power: 9 V ⎓ 0.6 A

SECURITY

WiFi Encryption:

WEP

WPA

WPA2

WPA/WPA2-Enterprise (802.1x)

Network Security:

SPI Firewall

Access Control

IP & MAC Binding

Application Layer Gateway

Guest Network: 1× 2.4 GHz Guest Network

SOFTWARE

Protocols:

IPv4

IPv6

Parental Controls:

URL Filtering

Time Controls

WAN Types:

Dynamic IP

Static IP

PPPoE

PPTP

L2TP

Quality of Service: QoS by Device

NAT Forwarding:

Port Forwarding

Port Triggering

DMZ

UPnP

IPTV:

IGMP Proxy

IGMP Snooping

DHCP:

Address Reservation

DHCP Client List

Server

DDNS:

NO-IP

Comex

DynDNS

Management:

Tether App

Webpage

Check Web Emulator>

OTHER

System Requirements:

Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

Certifications: FCC, CE, RoHS

Environment:

Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Storage Temperature: -40℃~70℃ (-40℉ ~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

PHYSICAL

Dimensions (W×D×H): 182 × 128 × 35 mm

Package Contents:

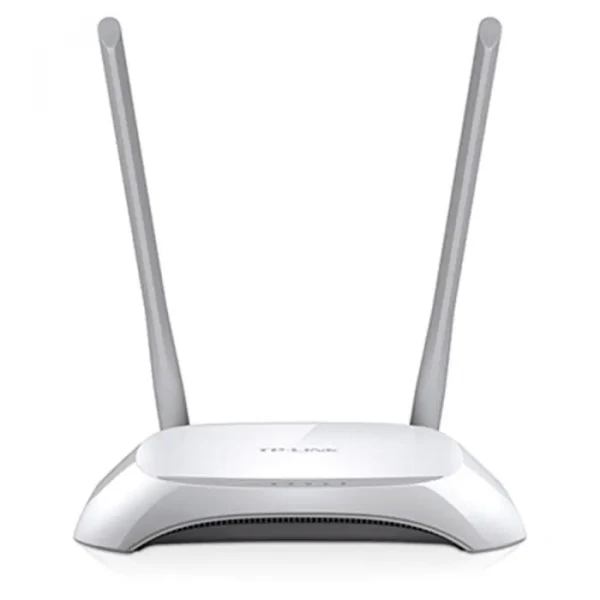

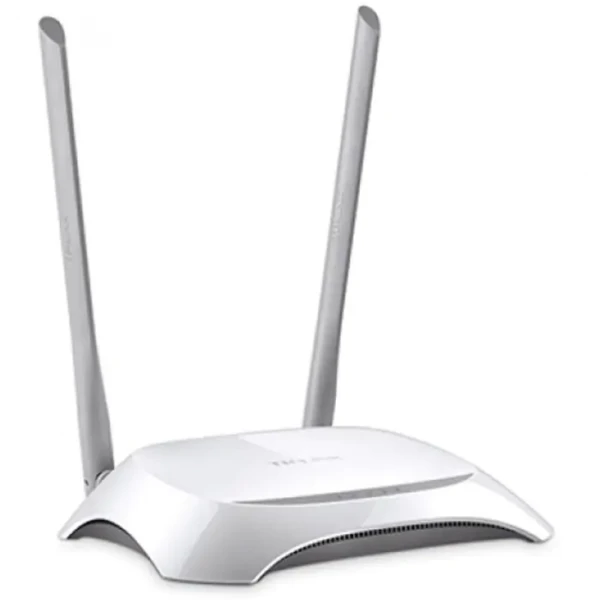

Wi-Fi Router TL-WR840N

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide
